Low-Temperature High-Reliability Solder Paste

Inquire Now

Share:

Products Description

Product Documentation

FSA-170D

FSA-170P

FTD-170

FTP-170

Description

Features

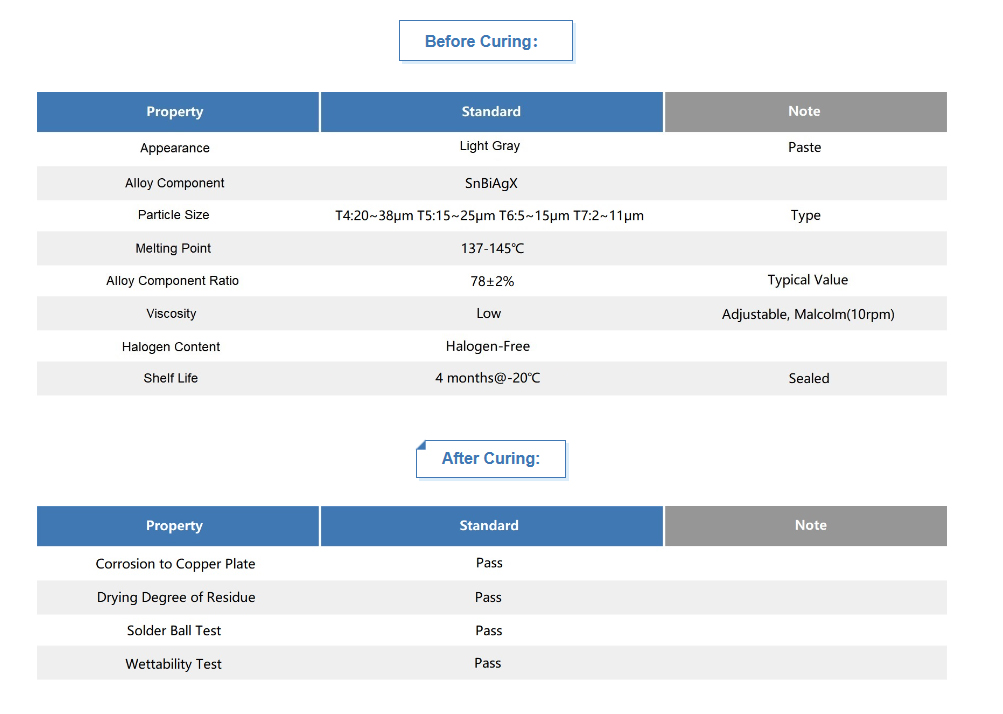

Properties

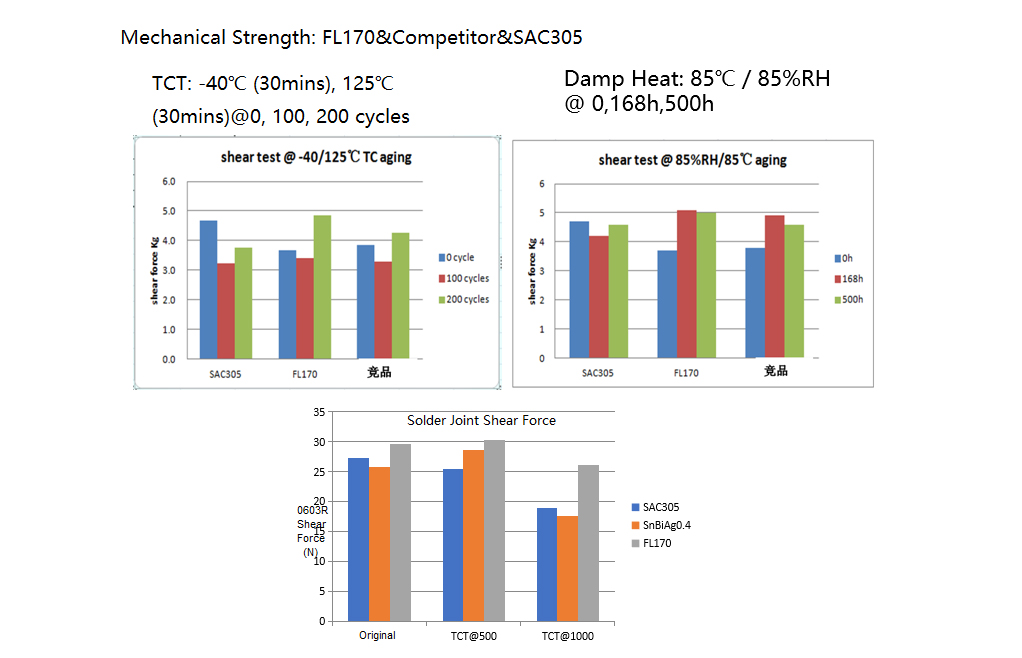

Solder Joint Performance

Instructions

The main alloy component of  FSA-170D series epoxy solder paste is Fitech’s FL170 low-temperature alloy solder powder (SnBiAgX).  Fitech classifies FL170 solder powders into T4 to T7 based on particle sizes. The solder powder and epoxy-based flux are formulated into superior low-temperature high-reliability solder paste.

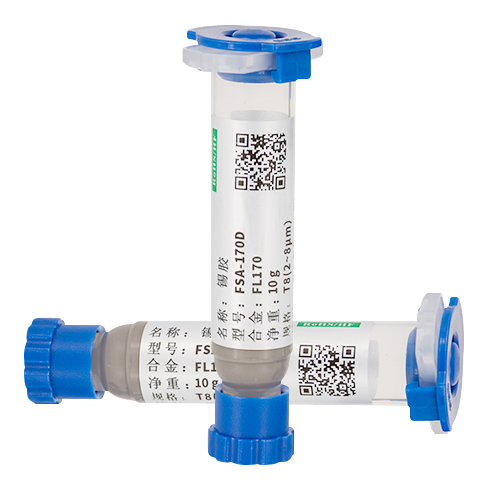

FSA-170D

1. Excellent sphericity, uniform particle size, low oxygen content, and high strength;

2. Reduce solvent volatilization during the curing process;

3. Halogen-free, no clean;
4. Reduce solder ball formation after soldering;

5. The solder joints are metallurgically connected, which are equivalent to the soldering effects of solder paste;

6. The soldering residue becomes thermosetting adhesive, which is attached around the solder joint to improve its strength and enhance the anti-corrosion and insulation performance;

7. It is suitable for reliable packaging of thin substrates and non-heat-resistant components.

FSA-170D

FSA-170D

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste.
Operating Environment: The best operating temperature and humidity are 20-25°C and 40-60%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Stencil Cleaning Solvent: Ether. Propylene glycol monomethyl ether (PM) is preferred.

Description

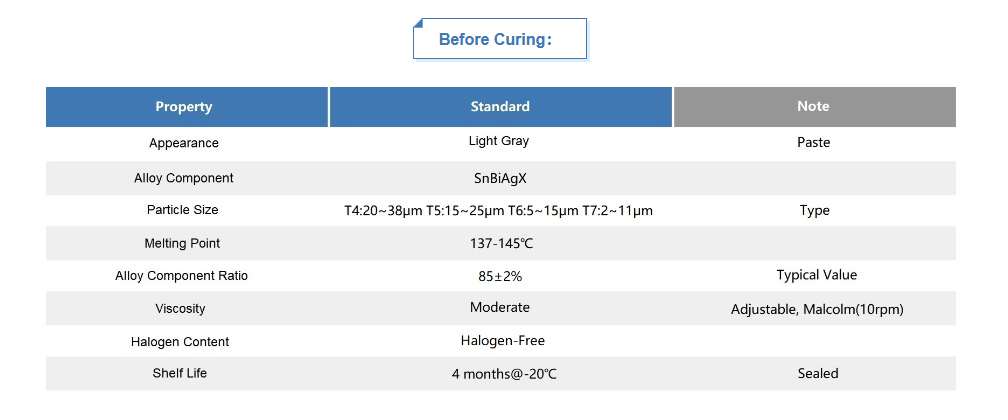

Properties

Solder Joint Performance

Instructions

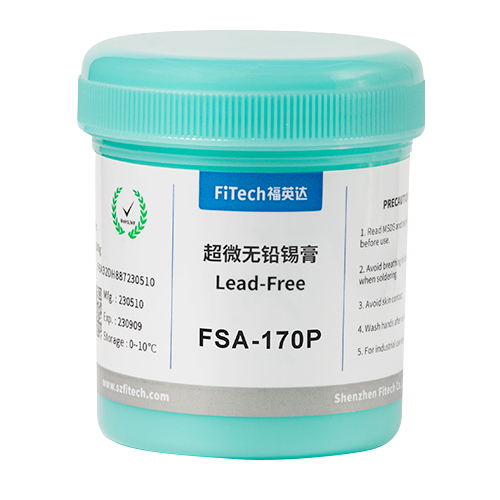

FSA-170P (180P/200P) series low-temperature lead-free high reliability solder adhesive (epoxy solder paste) products are composed of low-temperature alloy solder powder and halogen-free flux. Only a tiny amount of solvent evaporates during the soldering and curing process. There is no solder ball generation after soldering. The solder powder melts and shrinks, and the solder joints are metallurgical connections, which are equivalent to the soldering effect of solder paste. FSA-170P epoxy solder paste is unnecessary to clean. The solder residue becomes thermosetting adhesive to reinforce the solder joint and enhance the anti-corrosion and insulation performance. The product is suitable for the reliable packaging of thin substrates and non-heat-resistance components.


FSA-170P

FSA-170P

FSA-170P

FSA-170P

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.

Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste

Operating Environment: The best operating temperature and humidity are 20-25°C and 40-60%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Cleaning Instruction: There is a small amount of residue around the pad after reflow, which should be cleaned with deionized water as soon as possible. The temperature of deionized water is between 25°C and 40°C.

Description

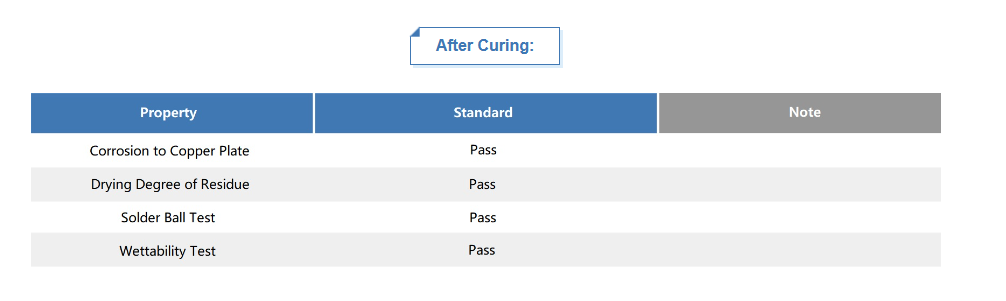

Properties

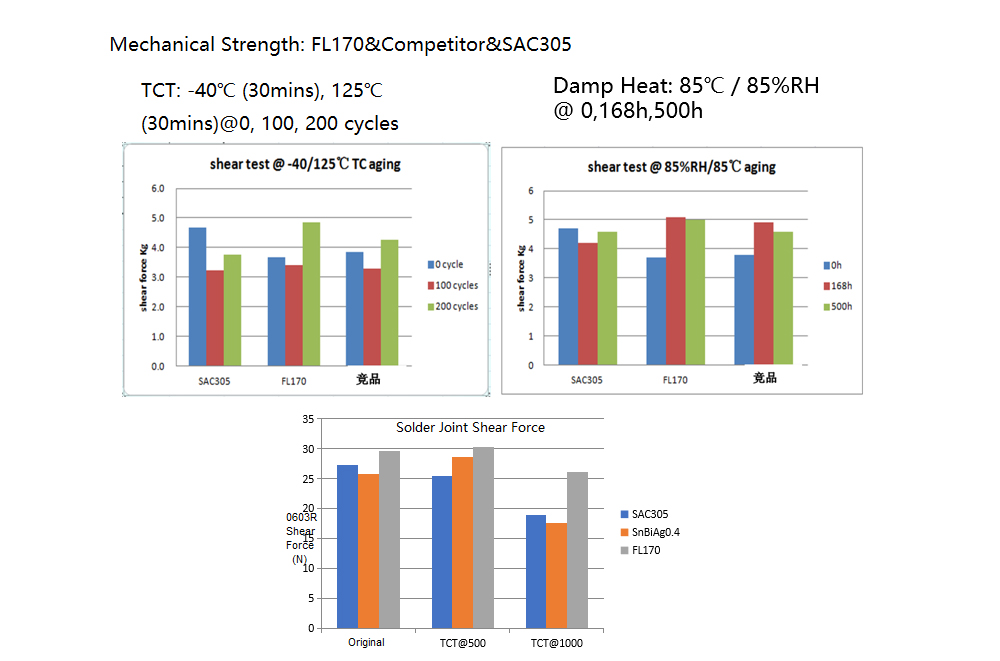

Solder Joint Performance

Instructions

Low-temperature FL170 alloy solder powder with good sphericity, uniform particle size, low oxygen content, and high strength are combined with halogen-free flux to produce FTD-170 series low-temperature solder paste. Only a small amount of solvent volatilizes during the soldering process. There is no solder ball formation after soldering. The solder paste has excellent performance of residue minimization and wettability. The solder joints generated are strong, plump, and bright. FTD-170 is ideal for low-temperature soldering, especially for low-temperature component mounting.


FTD-170

FTD-170

FTD-170

FTD-170

1. Storage and Recovery Instruction: Solder paste is normally stored in a refrigerator with -5~10℃. When solder paste is taken out of the cold box,its temperature is much lower than room temperature. If use without the recovery process varies damage may be caused to the paste. Opening the cap of sealing may cause water vapor in the air to condense on the paste. If this occurs, later in the reflow furnace (temperature over 150 ℃ ), water would vaporize due to strong heat.This may lead to solder explosion and damage the chip.

2. Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

3. Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.

4. Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste.
5. Operating Environment:
The best operating temperature and humidity are 20-25°C and 40-60%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

6. Operating Time

① Continuous printing time: When adding solder paste continuously: 8 hours; In case of discontinuous addition of solder paste: 4 hours; ② Please add solder paste before the solder paste on the board is almost one third (rolling diameter: 10mm or less); ③ Please keep the solder paste on the plate within 3 hours; ④ If printing is interrupted for more than 30 minutes, please clean the stencil. ⑤ Dwell time after printing: After the solder paste is printed, the components should be mounted as soon as possible and the soldering should be completed when passing the oven to avoid drying out the surface of the solder paste due to long storage, which will affect the component mounting and soldering effects. Generally, the recommended dwell time of solder paste is no more than 4 hours, while the low-temperature bismuth-containing solder paste does not exceed 2 hours. If the printing is interrupted for more than 30 minutes or is temporarily interrupted, the printing template needs to be cleaned. It can continue to work after 1-2 trial printing. The solder paste attached to the narrow space of the opening (≤0.4mm) and the opening of the stencil will gradually dry, which will degenerate the adhesive ability.

Description

Properties

Solder Joint Performance

Instructions

Low-temperature FL170 alloy solder powder with excellent sphericity, uniform particle size, low oxygen content, and high strength are combined with halogen-free flux to produce FTP-170 series low-temperature solder paste. Only a small amount of solvent volatilizes during the soldering process. There is no solder ball formation after soldering. In addition, FTP-170 has an excellent performance in residue minimization and wettability. The solder joints generated are strong, plump, and bright. The product is ideal for low-temperature soldering, especially for low-temperature component mounting.


FTP-170

FTP-170

FTP-170

FTP-170

1、Storage and Recovery Instruction: Solder paste is normally stored in a refrigerator with -5~10℃. When solder paste is taken out of the cold box,its temperature is much lower than room temperature. If use without the recovery process varies damage may be caused to the paste. Opening the cap of sealing may cause water vapor in the air to condense on the paste. If this occurs, later in the reflow furnace (temperature over 150 ℃ ), water would vaporize due to strong heat.This may lead to solder explosion and damage the chip.

2、Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

3、Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.

4. Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste

5. Operating Environment: The best operating temperature and humidity are 20-25°C and 40-60%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

6. Operating Time

① Continuous printing time: When adding solder paste continuously: 8 hours; In case of discontinuous addition of solder paste: 4 hours; ② Please add solder paste before the solder paste on the board is almost one third (rolling diameter: 10mm or less); ③ Please keep the solder paste on the plate within 3 hours; ④ If printing is interrupted for more than 30 minutes, please clean the stencil. ⑤ Dwell time after printing: After the solder paste is printed, the components should be mounted as soon as possible and the soldering should be completed when passing the oven to avoid drying out the surface of the solder paste due to long storage, which will affect the component mounting and soldering effects. Generally, the recommended dwell time of solder paste is no more than 4 hours, while the low temperature bismuth-containing solder paste does not exceed 2 hours. If the printing is interrupted for more than 30 minutes or is temporarily interrupted, the printing template needs to be cleaned. It can continue to work after 1-2 trial printing. The solder paste attached to narrow space of the opening (≤0.4mm) and the opening of the stencil will gradually dry, which will degenerate the adhesive ability.
