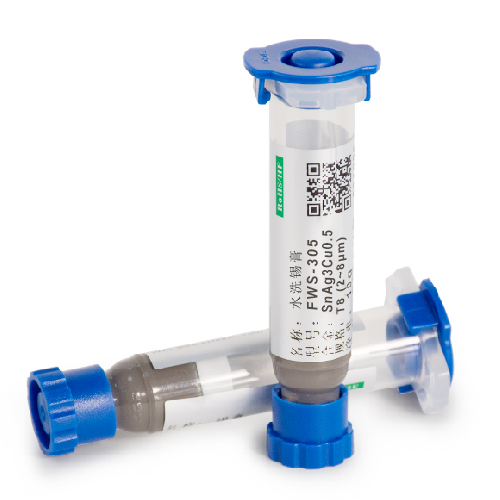

Advantages and disadvantages of water-soluble solder paste?

As an electronic soldering material, water-soluble solder paste has a series of obvious advantages over traditional organic solvent solder paste, but there are also some disadvantages.The following is a detailed analysis of its advantages and disadvantages:

Advantage:

Environmental friendliness and safety

Alternative to organic solvents: The cleaning process only requires the use of deionised water, which significantly reduces the emission of volatile organic compounds (VOCs) and meets the requirements of RoHS (Restriction of the Use of Certain Hazardous Substances Directive), REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals Regulations) and other environmental regulations.

Safe operation: Avoiding the risk of flammable and toxic solvents improves the working environment in the workshop and reduces health hazards for operators.

Excellent soldering performance:

Active flux: It can effectively remove the oxides on the metal surface of powder and pads and provide excellent wettability, which is especially suitable for the soldering of high-density packages (e.g. BGA, QFN) and micro components.

Low-temperature soldering compatibility: Some water-soluble solder paste formulations support low-temperature soldering, which is suitable for heat-sensitive components such as LEDs and flexible circuit boards, and reduces thermal damage during the soldering process.

Cleaning Ease and Cost Advantage:

Residue easy to remove: water-soluble flux residues can be quickly removed by spray or ultrasonic cleaning, simplifying the cleaning process and reducing equipment maintenance frequency.

Long-term cost reduction: Compared with solvent cleaning, aqueous cleaning costs less, especially in mass production, cost-effective.

Stable electrical properties:

Low ionic residue: When cleaning is thorough, fewer conductive ions remain, reducing the risk of leakage and making it suitable for high-frequency, high-reliability circuit applications.

Disadvantages

Process complexity and equipment investment:

Dedicated cleaning equipment: need to configure water washing, drying systems (such as high-pressure spraying, hot air drying), the initial investment is high.

Strict drying requirements: Residual moisture may lead to PCB delamination or corrosion, so temperature and humidity conditions need to be strictly controlled.

Material sensitivity and storage challenges:

Risk of hygroscopic failure: Water-soluble solder pastes need to be used quickly after opening (usually less than 24 hours) and stored in a low-temperature dry environment (e.g., 0-10°C refrigerated) to avoid hygroscopic failure.

Short stencil life: High humidity can lead to changes in paste viscosity and frequent cleaning of the stencil during printing, affecting productivity.

Potential corrosion and reliability issues:

Residual corrosion risk: If cleaning is not thorough, acidic flux residue may corrode solder joints or substrates, affecting solder quality and product reliability.

Insufficient adhesion: Due to the lack of tackifying ingredients such as rosin, water-soluble solder paste has weak adhesion to complex structures or large pads, which may affect mechanical strength.

Application Limitations

Component compatibility: moisture-sensitive components (e.g., unencapsulated MEMS, certain sensors) need to avoid the water washing process, which limits the application of water-soluble solder paste in some fields.

Wastewater treatment challenges: cleaning wastewater contains metal ions and organic matter, requiring additional treatment to avoid polluting the environment and increasing treatment costs.

Optimisation Recommendations

Bonding problem improvement: New water-soluble solder paste formulations with modified resins or nano-materials can be selected to improve bonding.For large pads or heavy components, the fixing effect can be enhanced with dispensing process.

Corrosion prevention and control measures: the use of neutral or weakly acidic flux to reduce the content of corrosive components (such as halogen).After cleaning to increase the drying post-checking steps, such as the use of ionic contamination tester, to ensure that the residues meet the standards.

Process adaptation recommendations:

Applicable scenarios: automotive electronics, medical equipment, aerospace and other high-reliability areas; miniaturisation, high-density PCB welding.

Scenarios of caution: small production lines without cleaning conditions, extreme cost-sensitive products, humid environment applications.

Summary:

Water-soluble solder paste is an important choice in the trend of environmental protection, with significant environmental protection and soldering performance advantages.However, the high demands on process control, equipment and the environment need to be fully evaluated.With mature water washing process and waste water treatment capability, it is recommended to prioritise the use of water-soluble solder pastes to meet the stringent environmental certification requirements and the soldering needs of high-density, miniaturised designs.For bonding or cost-sensitive scenarios, hybrid processes (e.g., partial water wash + no-clean solder paste) or new formulation optimisation options can be explored.
